| Citation: | DUAN Liang, SHI Huailong, SONG Chunyuan, LIN Jiazhi, CHEN Longfei, ZHANG Yaoxun. Study on Hydraulic Interconnected Damper and Dynamic Performance of High-Speed Electric Multiple Units[J].Journal of Southwest Jiaotong University.doi:10.3969/j.issn.0258-2724.20240511
|

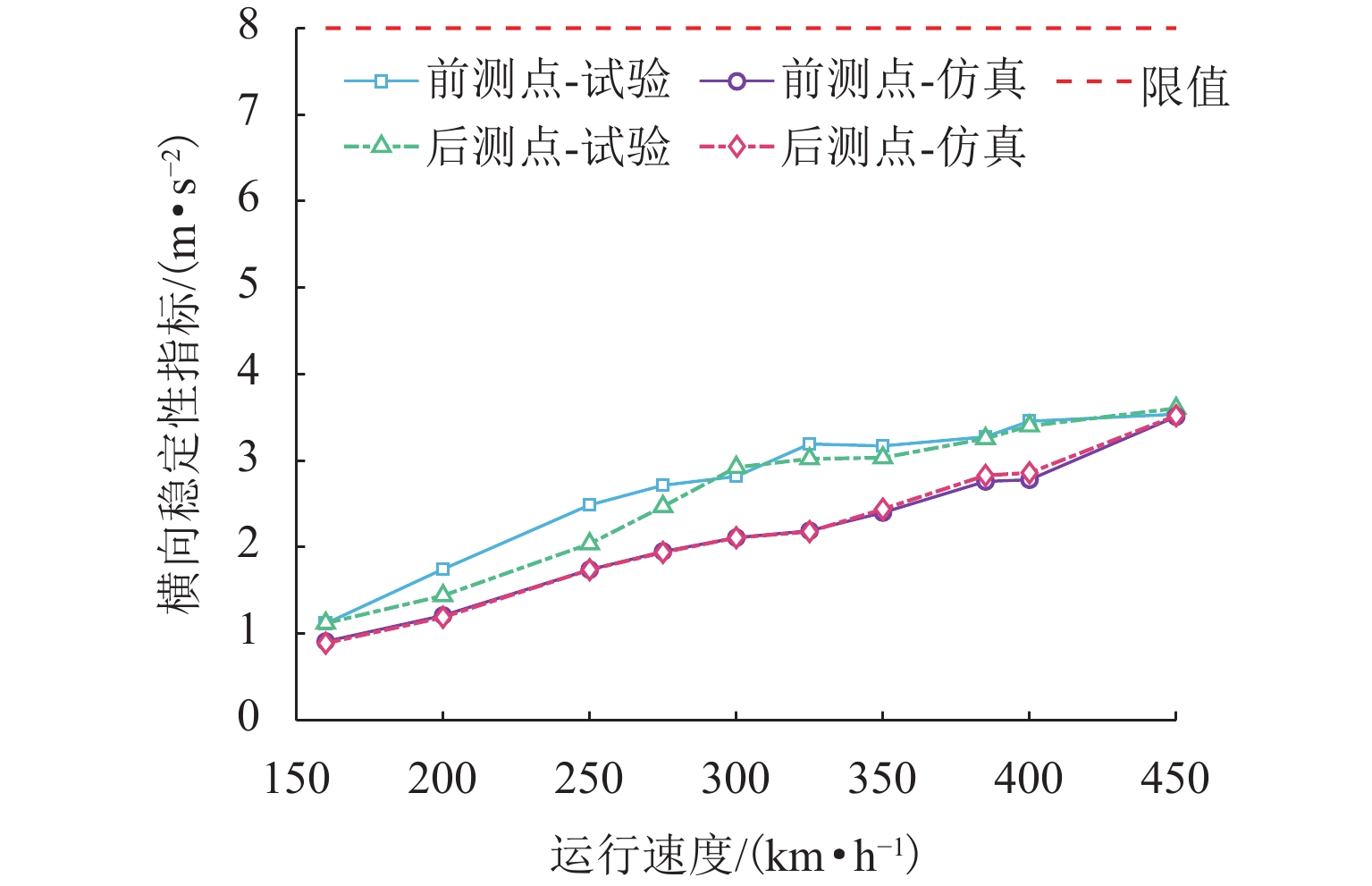

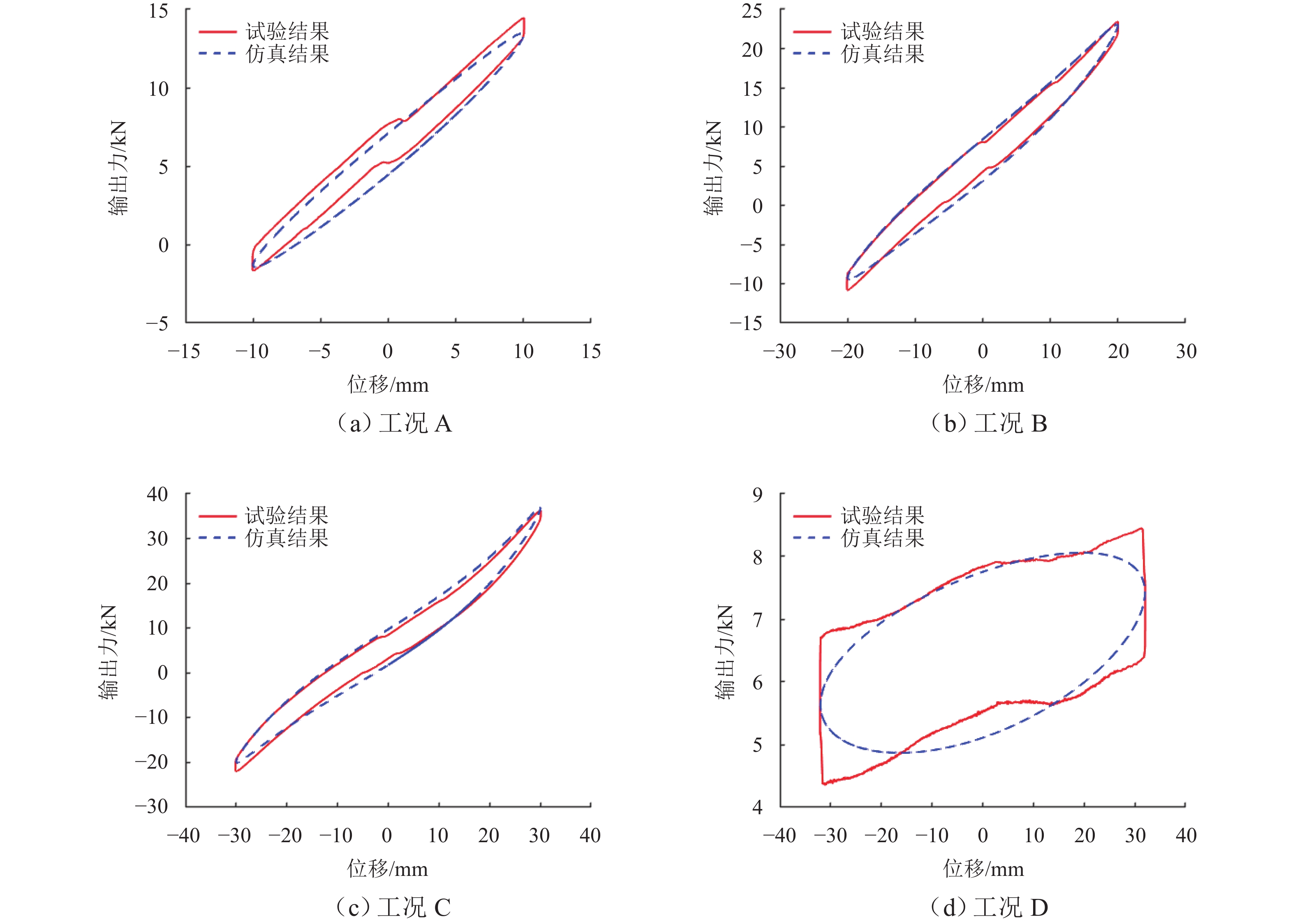

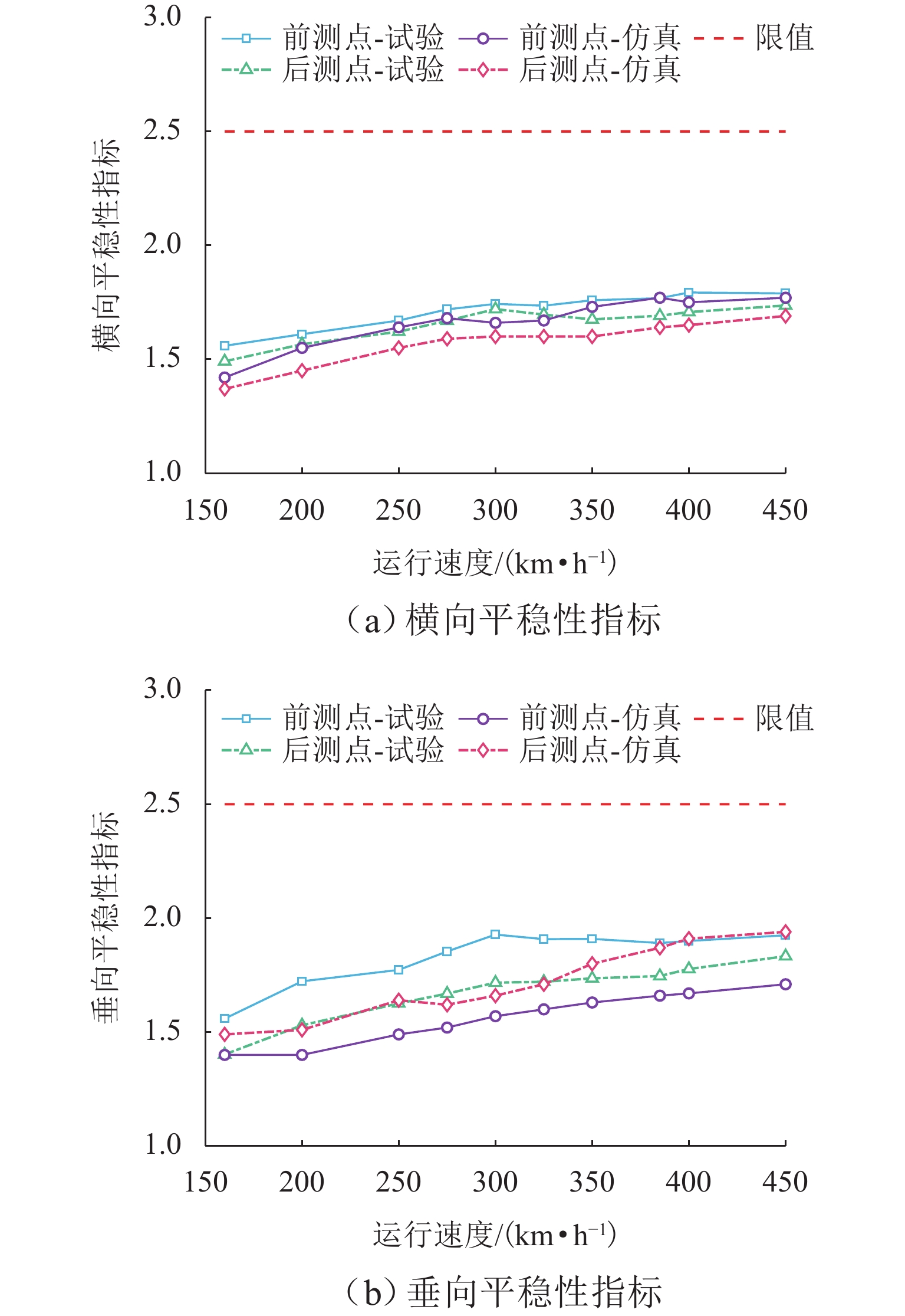

To address the inadequate anti-roll stiffness of the axle box in-board bogies of high-speed electric multiple units (EMUs), a primary suspension configuration was proposed to replace the traditional hydraulic damper with hydraulic interconnected units. The configuration could increase the anti-roll stiffness without increasing the vertical stiffness. Firstly, the equilibrium equations of oil pressure, flow rate, and output force were derived. A nonlinear dynamic model of the vehicle system was established using SIMPACK, and a simulation model of the hydraulic interconnected units was created in MATLAB/Simulink to facilitate co-simulation of the vehicle-hydraulic interconnected unit coupling system. Subsequently, the accuracy of the simulation model was validated based on the quasi-static characteristic test of the hydraulic interconnected units and the dynamic tests of the roller rig of the entire vehicle. The simulation analysis was conducted to ascertain the impact of pivotal parameters associated with the hydraulic interconnected units on the roll angle of the car body, derailment coefficient, and riding index for various operation conditions of vehicles. Finally, the field dynamic tests were conducted to verify the improvement in the dynamic performance of vehicles during curve negotiation. The results have shown that the roll stiffness of the interconnection unit is significantly greater than that of the traditional hydraulic dampers. The roll angle of the car body can be reduced by more than 0.5°, which is conducive to narrowing the dynamic limit and ensuring overturning safety. The field test results demonstrate that the dynamic indexes of hydraulic interconnected units are comparable to those of traditional oil pressure dampers. It is viable to address the issue of inadequate anti-roll capability of axle box in-board bogies by adopting hydraulic interconnected units.
| [1] |
PERIS E, GOIKOETXEA J. Roll2Rail: new dependable rolling stock for a more sustainable, intelligent and comfortable rail transport in Europe[J]. Transportation Research Procedia, 2016, 14: 567-574.
doi:10.1016/j.trpro.2016.05.294
|
| [2] |
David Briginshaw. 西门子公司Velaro系列高速列车的新进展[J]. 国外铁道机车与动车, 2020(3): 9-12.
David Briginshaw. Velaro evolution[J]. Foreign Railway Locomotive and Motor Car, 2020(3): 9-12.
|
| [3] |
丁叁叁, 陈大伟, 刘加利. 中国高速列车研发与展望[J]. 力学学报, 2021, 53(1): 35-50.
DING Sansan, CHEN Dawei, LIU Jiali. Research, development and prospect of China high-speed train[J]. Chinese Journal of Theoretical and Applied Mechanics, 2021, 53(1): 35-50.
|
| [4] |
张隶新. 轴箱内置和外置高速转向架的动力学性能对比[J]. 铁道科学与工程学报, 2021, 18(3): 581-587.
ZHANG Lixin. Dynamics analysis of high-speed railway bogies with inner bearing and outer bearing suspensions[J]. Journal of Railway Science and Engineering, 2021, 18(3): 581-587.
|
| [5] |
缪炳荣, 张卫华, 池茂儒, 等. 下一代高速列车关键技术特征分析及展望[J]. 铁道学报, 2019, 41(3): 58-70.
MIAO Bingrong, ZHANG Weihua, CHI Maoru, et al. Analysis and prospects of key technical features of next generation high speed trains[J]. Journal of the China Railway Society, 2019, 41(3): 58-70.
|
| [6] |
刘秀梅, 李永涛. 车辆油气悬架技术研究综述[J]. 江南娱乐网页版入口官网下载安装学报, 2025, 60(2): 374-394.
LIU Xiumei, LI Yongtao. Review of research on vehicle hydro-pneumatic suspension technology[J]. Journal of Southwest Jiaotong University, 2025, 60(2): 374-394.
|
| [7] |
SMITH W A, ZHANG N, JEYAKUMARAN J. Hydraulically interconnected vehicle suspension: theoretical and experimental ride analysis[J]. Vehicle System Dynamics, 2010, 48(1): 41-64.
doi:10.1080/00423110903243190
|
| [8] |
SMITH W A, ZHANG N, HU W. Hydraulically interconnected vehicle suspension: handling performance[J]. Vehicle System Dynamics, 2011, 49(1/2): 87-106.
|
| [9] |
CAO D P, RAKHEJA S, SU C Y. Roll- and pitch-plane-coupled hydro-pneumatic suspension. part 2: dynamic response analyses[J]. Vehicle System Dynamics, 2010, 48(4): 507-528.
doi:10.1080/00423110902923461
|
| [10] |
DAMAVANDI A D, MASIH-TEHRANI M, MASHADI B. Configuration development and optimization of hydraulically interconnected suspension for handling and ride enhancement[J]. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 2022, 236(2/3): 381-394.
|
| [11] |
JAFARI B, MASHADI B. Valve control of a hydraulically interconnected suspension system to improve vehicle handling qualities[J]. Vehicle System Dynamics, 2023, 61(4): 1011-1027.
doi:10.1080/00423114.2022.2056490
|
| [12] |
QI H M, CHEN Y C, ZHANG N, et al. Improvement of both handling stability and ride comfort of a vehicle
viacoupled hydraulically interconnected suspension and electronic controlled air spring[J]. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 2020, 234(2/3): 552-571.
|
| [13] |
ZHU H J, YANG J, ZHANG Y Q. Dual-chamber pneumatically interconnected suspension: modeling and theoretical analysis[J]. Mechanical Systems and Signal Processing, 2021, 147: 107125.
doi:10.1016/j.ymssp.2020.107125
|
| [14] |
陈盛钊, 张农, 张邦基, 等. 液压互联悬架关键参数对车辆频响特性的影响[J]. 湖南大学学报(自然科学版), 2017, 44(2): 16-25.
CHEN Shengzhao, ZHANG Nong, ZHANG Bangji, et al. Influence of key parameters of hydraulically interconnected suspension on frequency domain characteristics of vehicles[J]. Journal of Hunan University (Natural Sciences), 2017, 44(2): 16-25.
|
| [15] |
陈盛钊, 钟义旭, 张邦基, 等. 液压互联悬架系统关键参数对车辆动力学响应影响及试验验证[J]. 机械工程学报, 2017, 53(14): 39-48.
doi:10.3901/JME.2017.14.039
CHEN Shengzhao, ZHONG Yixu, ZHANG Bangji, et al. Influence of key parameters of hydraulically interconnected suspension on vehicle dynamics and experimental validation[J]. Journal of Mechanical Engineering, 2017, 53(14): 39-48.
doi:10.3901/JME.2017.14.039
|
| [16] |
DI GIALLEONARDO E, FACCHINETTI A, BRUNI S. Control of an integrated lateral and roll suspension for a high-speed railway vehicle[J]. Vehicle System Dynamics, 2023, 61(2): 472-498.
doi:10.1080/00423114.2022.2049319
|
| [17] |
DI GIALLEONARDO E, SANTELIA M, BRUNI S, et al. A simple active carbody roll scheme for hydraulically actuated railway vehicles using internal model control[J]. ISA Transactions, 2022, 120: 55-69.
doi:10.1016/j.isatra.2021.03.003
|
| [18] |
COLOMBO E F, DI GIALLEONARDO E, FACCHINETTI A, et al. Active carbody roll control in railway vehicles using hydraulic actuation[J]. Control Engineering Practice, 2014, 31: 24-34.
doi:10.1016/j.conengprac.2014.05.010
|
| [19] |
LI H X, LI S W, SUN W C. Vibration and handling stability analysis of articulated vehicle with hydraulically interconnected suspension[J]. Journal of Vibration and Control, 2019, 25(13): 1899-1913.
doi:10.1177/1077546319844092
|
| [20] |
ZHANG J, DENG Y W, ZHANG N, et al. Vibration performance analysis of a mining vehicle with bounce and pitch tuned hydraulically interconnected suspension[J]. Chinese Journal of Mechanical Engineering, 2019, 32(1): 1-17.
doi:10.1186/s10033-018-0313-7
|
| [21] |
索雪峰, 刘湘, 杜腾, 等. 三轴车中后桥液压互联悬架减振特性研究[J/OL]. 江南娱乐网页版入口官网下载安装学报, 2024: 1-9. (2024-05-10). https://kns.cnki.net/kcms/detail/51.1277.u.20240509.1402.004.html.
SUO Xuefeng, LIU Xiang, DU Teng, et al. Research on vibration reduction characteristics of hydraulic interconnecting suspension in middle and rear axle of three-axle vehicle[J/OL]. Journal of Southwest Jiaotong University, 2024: 1-9. (2024-05-10). https://kns.cnki.net/kcms/detail/51.1277.u.20240509.1402.004.html.
|
| [22] |
LUO R, LIU C D. Dynamics simulation of the high-speed train using interconnected hydro-pneumatic suspension as a self-steering system[J]. Vehicle System Dynamics, 2022, 60(6): 2055-2074.
doi:10.1080/00423114.2021.1892156
|
| [23] |
LUO R, LIU C D, SHI H L. Dynamic simulation of a high-speed train with interconnected hydro-pneumatic secondary suspension[J]. Proceedings of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit, 2022, 236(5): 570-581.
doi:10.1177/09544097211031334
|
| [24] |
苏瑞. 内轴箱悬挂高速动车组转向架抗倾覆稳定性研究[D]. 成都: 江南娱乐网页版入口官网下载安装, 2023.
|
| [25] |
唐羽. 轴箱内置高速列车一系油气互联抗侧滚装置动力学研究[D]. 成都: 江南娱乐网页版入口官网下载安装, 2022.
|
| [26] |
童钧耕, 王平阳, 叶强. 热工基础[M]. 3版. 上海: 上海交通大学出版社, 2016.
|
| [27] |
罗仁, 石怀龙. 铁道车辆系统动力学及应用[M]. 成都: 江南娱乐网页版入口官网下载安装出版社, 2018.
|
| [28] |
翟婉明. 车辆-轨道耦合动力学[M]. 3版. 北京: 科学出版社, 2007.
|
| [29] |
中华人民共和国国家市场监督管理总局, 中国国家标准化管理委员会. 机车车辆动力学性能评定及试验鉴定规范: GB/T 5599—2019[S]. 北京: 中国标准出版社, 2019.
|
| [30] |
IX-CEN. Railway applications-testing and simulation for the acceptance of running characteristics of railway vehicles-running behaviour and stationary tests: BS EN 14363: 2016[S]. [S. l. ]: BSI, 2016.
|
| [31] |
石怀龙, 罗仁, 曾京. 国内外高速列车动力学评价标准综述[J]. 交通运输工程学报, 2021, 21(1): 36-58.
SHI Huailong, LUO Ren, ZENG Jing. Review on domestic and foreign dynamics evaluation criteria of high-speed train[J]. Journal of Traffic and Transportation Engineering, 2021, 21(1): 36-58.
|
| [32] |
祁亚运, 李龙, 石怀龙, 等. 高寒动车组温变特性对运行性能的影响分析[J]. 江南娱乐网页版入口官网下载安装学报, 2025, 60(2): 336-345.
QI Yayun, LI Long, SHI Huailong, et al. Influence of temperature-varying characteristics on operating performance of alpine electric multiple units[J]. Journal of Southwest Jiaotong University, 2025, 60(2): 336-345.
|
| [33] |
陆铭. 时速200公里轴箱内置式转向架动力学性能研究[D]. 成都: 江南娱乐网页版入口官网下载安装, 2021.
|
